System / 03
Casement 60
60 mm casement system.
A casement closes by pressing the sash onto the gasket around its whole perimeter. That compression is why casements are usually the first system to discuss when road noise or dust is the main complaint.
Casement 60 has nine published profiles and the deeper of the two casement sections. Acoustic figures are not published yet; this is a description of the mechanism, not a test result.
At a glance
- System
- Casement
- Depth
- 60 mm
- Chambers
- 5
- Profiles
- TF 201–209
- Formulation
- Lead-free
- Titanium dioxide
- 8 phr
- Gasket
- TPE
- Profile warranty
- 20 years
- Standard referenced
- EN 12608-1
Section drawings
9 published profiles.
Web previews of TruFrame’s published drawings, with overall dimensions in millimetres. Ask for CAD files and cutting data when you are ready to fabricate or detail.
Open in the drawing library
TF 201Casement 60 · section drawing
TF 202Casement 60 · section drawing

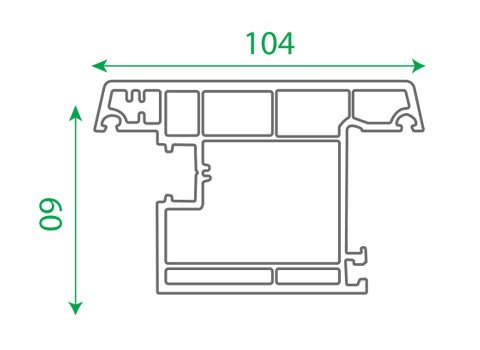

TF 203Casement 60 · section drawing

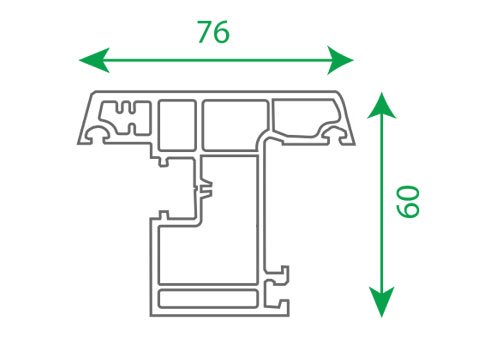

TF 204Casement 60 · section drawing
TF 205Casement 60 · section drawing
TF 206Casement 60 · section drawing
TF 207Casement 60 · section drawing

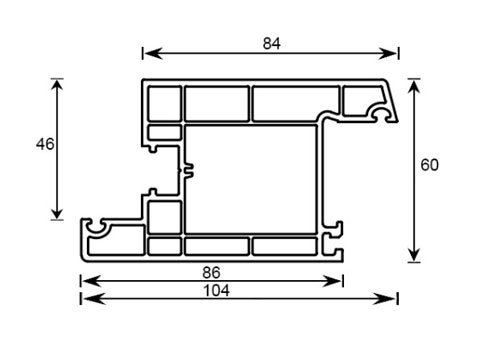

TF 208Casement 60 · section drawing

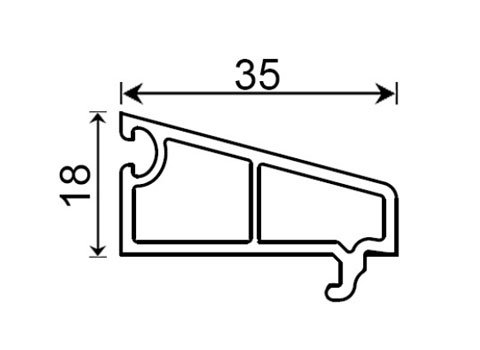

TF 209Casement 60 · section drawing
Applications
Where Casement 60 is typically used.
- Bedrooms facing a road
- Openings where dust is a concern
- Doors and larger casement openings
- Commercial spaces
Typical uses, not a guarantee for every opening.
To confirm
What our technical team will ask.
- 01Opening size and sash configuration
- 02Opening direction
- 03Hardware requirements
- 04Glazing specification
Performance
Published with the report.
- Acoustic performanceReport pending
- Thermal performanceReport pending
- Wind loadReport pending
Documents
Downloads for Casement 60.
- Section drawings (9)Open drawings
- System specification sheetPreliminary · PDF · 6 pages · 41 KB · covers all four systemsDownload PDF
- Test reportsDocument not yet published
- Warranty documentDocument not yet published
Next system
Casement 50 · Slimmer 50 mm casement systemSpecify Casement 60 for your opening.
Size, floor, which way it faces and what you want to keep out. That is usually enough for our technical team to point you to the right system.
