System / 01
Peafowl
Sliding system for wider openings.
Peafowl is the sliding system to start from when an opening is wide: balconies, living-room walls and full-width runs where a casement sash would swing into the room.
It has fifteen published profiles across two groups, which gives a fabricator more section choices when a job needs them. A slider seals differently from a casement, so where noise is the main concern, discuss both before deciding.
At a glance
- System
- Sliding
- Depth
- 60 mm
- Chambers
- 5
- Profiles
- TF 101–105TF 106–115
- Formulation
- Lead-free
- Titanium dioxide
- 8 phr
- Gasket
- TPE
- Profile warranty
- 20 years
- Standard referenced
- EN 12608-1
Section drawings
15 published profiles.
Web previews of TruFrame’s published drawings, with overall dimensions in millimetres. Ask for CAD files and cutting data when you are ready to fabricate or detail.
Open in the drawing library
TF 101Peafowl · section drawing

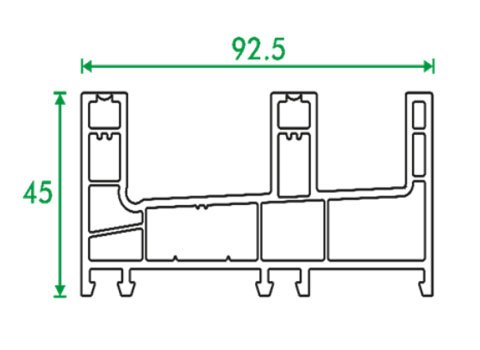

TF 102Peafowl · section drawing

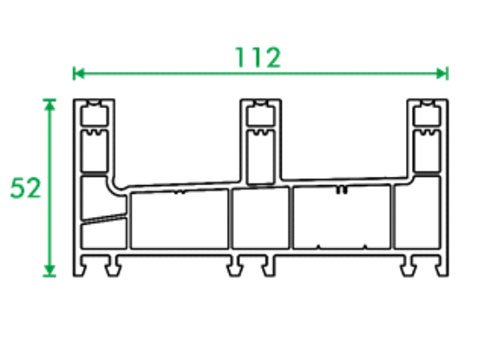

TF 103Peafowl · section drawing
TF 104Peafowl · section drawing

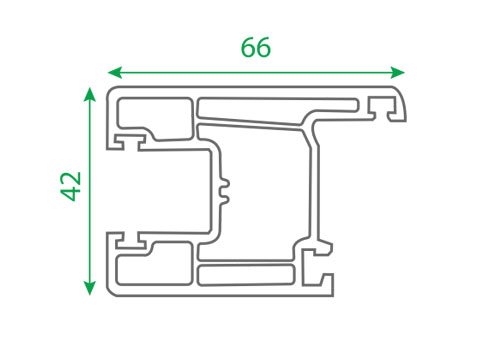

TF 105Peafowl · section drawing

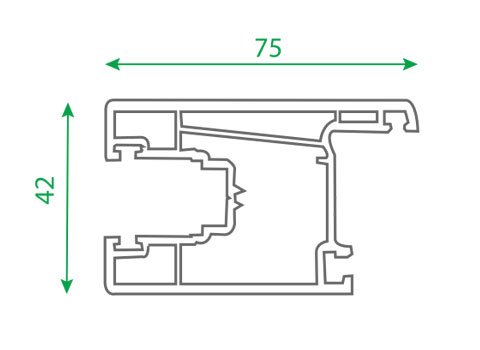

TF 106Peafowl · section drawing

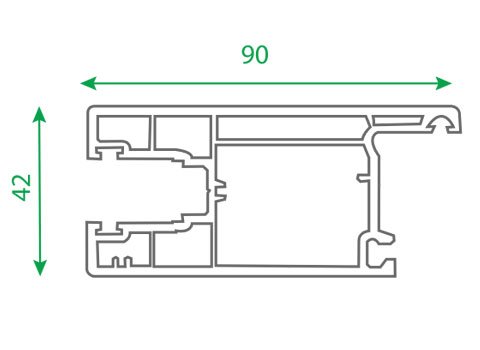

TF 107Peafowl · section drawing
TF 108Peafowl · section drawing
TF 109Peafowl · section drawing
TF 110Peafowl · section drawing
TF 111Peafowl · section drawing
TF 112Peafowl · section drawing
TF 113Peafowl · section drawing
TF 114Peafowl · section drawing
TF 115Peafowl · section drawing
Applications
Where Peafowl is typically used.
- Balcony openings
- Wide residential openings
- Commercial frontages
- Replacement of existing sliders
Typical uses, not a guarantee for every opening.
To confirm
What our technical team will ask.
- 01Opening width and height
- 02Number of tracks and panels
- 03Glazing specification
- 04Floor level and exposure
Performance
Published with the report.
- Acoustic performanceReport pending
- Thermal performanceReport pending
- Wind loadReport pending
Documents
Downloads for Peafowl.
- Section drawings (15)Open drawings
- System specification sheetPreliminary · PDF · 6 pages · 41 KB · covers all four systemsDownload PDF
- Test reportsDocument not yet published
- Warranty documentDocument not yet published
Next system
Falcon · Compact sliding systemSpecify Peafowl for your opening.
Size, floor, which way it faces and what you want to keep out. That is usually enough for our technical team to point you to the right system.
