System / 02
Falcon
Compact sliding system.
Falcon covers the everyday sliding opening: kitchens, utility areas and bedroom windows where a full sliding family is more than the job needs.
It shares the lead-free compound and TPE gasket with the rest of the range. The difference is geometry: four chambers instead of five, and five published profiles.
At a glance
- System
- Sliding
- Depth
- 60 mm
- Chambers
- 4
- Profiles
- TF 301–305
- Formulation
- Lead-free
- Titanium dioxide
- 8 phr
- Gasket
- TPE
- Profile warranty
- 20 years
- Standard referenced
- EN 12608-1
Section drawings
5 published profiles.
Web previews of TruFrame’s published drawings, with overall dimensions in millimetres. Ask for CAD files and cutting data when you are ready to fabricate or detail.
Open in the drawing library
TF 301Falcon · section drawing
TF 302Falcon · section drawing
TF 303Falcon · section drawing
TF 304Falcon · section drawing

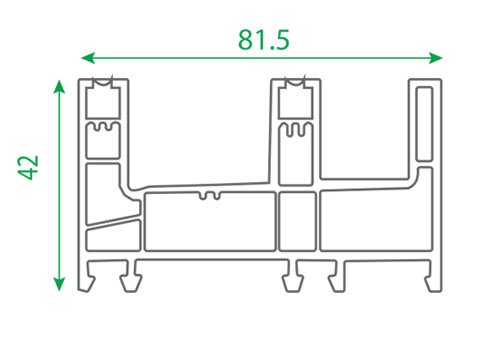

TF 305Falcon · section drawing
Applications
Where Falcon is typically used.
- Kitchen and utility windows
- Bedroom windows
- Smaller sliding openings
Typical uses, not a guarantee for every opening.
To confirm
What our technical team will ask.
- 01Opening width and height
- 02Number of panels
- 03Glazing specification
Performance
Published with the report.
- Acoustic performanceReport pending
- Thermal performanceReport pending
- Wind loadReport pending
Documents
Downloads for Falcon.
- Section drawings (5)Open drawings
- System specification sheetPreliminary · PDF · 6 pages · 41 KB · covers all four systemsDownload PDF
- Test reportsDocument not yet published
- Warranty documentDocument not yet published
Next system
Casement 60 · 60 mm casement systemSpecify Falcon for your opening.
Size, floor, which way it faces and what you want to keep out. That is usually enough for our technical team to point you to the right system.
